Newport Intake Manifold Identification Guide
Over more than 20 years of Newport model production, a few different intake manifold designs have been used. This refers to the rectangular, black plastic manifold located on the left side of the feed pump module. We currently support three main versions.
Current Production Manifold
The latest version features:
Six external fitting holes
A ~3/4" threaded solenoid port on the top
Use part number: SUB-NP-MK2-INTZ.
Legacy Manifolds
Two earlier versions are still available:
Original 5-Hole Manifold
Five external fitting holes
Compatible with legacy solenoid types (ECI or Alcon), via 1" opening. Or current production ~3/4" Spartan with adapter piece.
Use part number: SUB-NP-MK2-INT
Six-Hole Manifold for ECI or Alcon Solenoids
Same six-hole pattern as current model
Compatible with legacy solenoid types (ECI or Alcon), via 1" opening. Or current production ~3/4" Spartan with adapter piece.
Use part number: SUB-NP-MK2-INEZ
Not Sure Which One You Have?

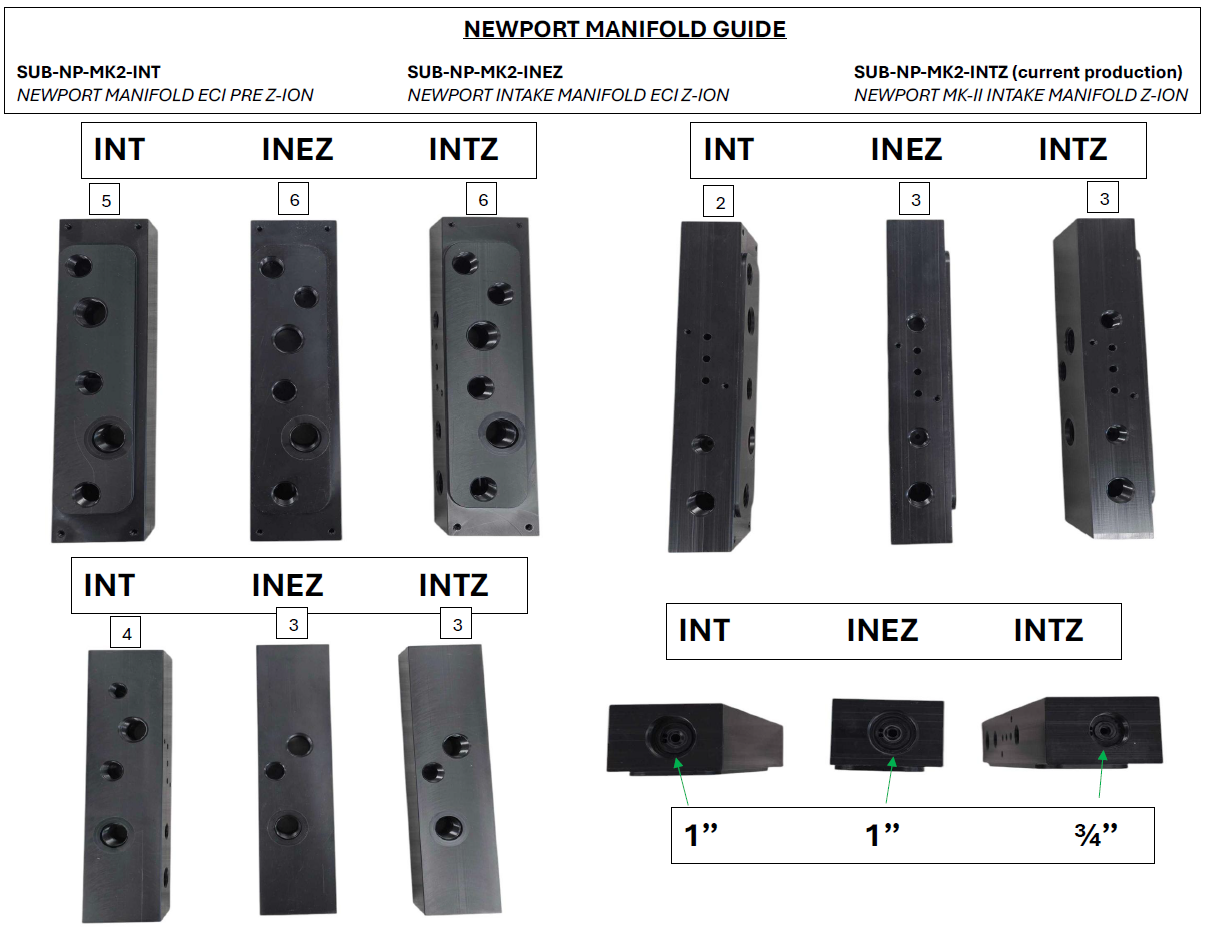

The easiest way to confirm your model is by matching the hole pattern. Refer to the guide below for a visual comparison of all three versions.
