Salinity Probe Replacement Guide

Probe Replacement Reference Guide

Use this guide to determine which conductivity probe to use if your current probe needs to be replaced.

Common Probe Types

  • EL-MPC-SP (commonly called SP1)

    • Status: Obsolete as of July 2023

    • Availability: No longer available from the factory. Limited stock may remain in the dealer network.

  • EL-MPC-SP4

    • Status: Current production

    • Availability: Readily available for purchase

📷 Photos of all probe types are provided at the bottom of this page.


Important Compatibility Notes

  • MPC 3000 systems must be upgraded to MPC 5000 in order to function with the SP4 probe if the SP1 is no longer available.

  • SP2 and SP3 probes are obsolete and have been out of production for several years.

  • All Spectra Connect systems use the SP4 probe.


How to Identify Your MPC Board Chip Version

The easiest way to identify your MPC board's chip version is by checking the display panel. The version will appear as:

Spectra Watermakers A## or B##

You can also locate the chip physically: it's the large white square near the center of the circuit board (see image below for reference).


Probe Compatibility Table

MPC Board Chip #Direct Replacement ProbeUpgrade to SP4 Option
B##SP1New MPC Board (EL-MPC-PCBDPA40) & SP4 Probe
A31SP1New MPC Board (EL-MPC-PCBDPA40) & SP4 Probe
A34 / A35SP4 + Daughter Board (EL-MPC-SPCBA)New MPC Board (EL-MPC-PCBDPA40) & SP4 Probe
A36SP4N/A
A37 (first with built-in daughter board)SP4N/A
A39 / A40SP4N/A

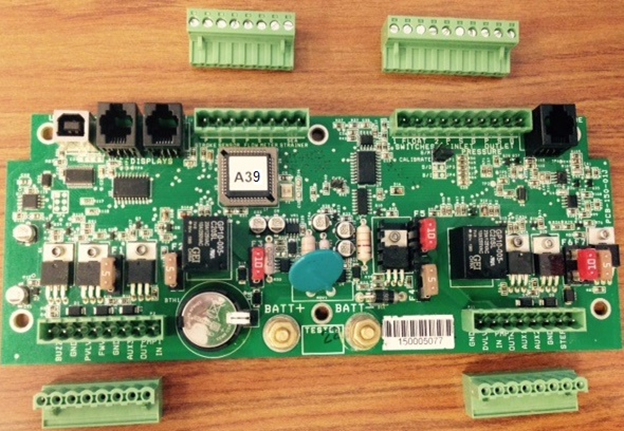

MPC Board Example with chip location:

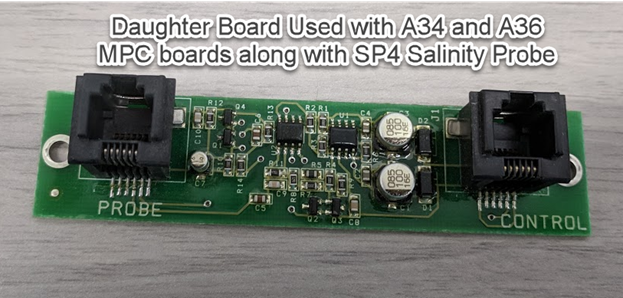

Daughter board (EL-MPC-SPCBA) example:

Note: A36 is compatible both with & without the daughter board

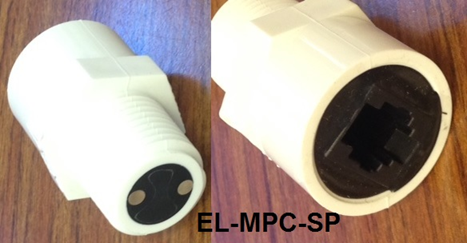

"SP1" Probe:

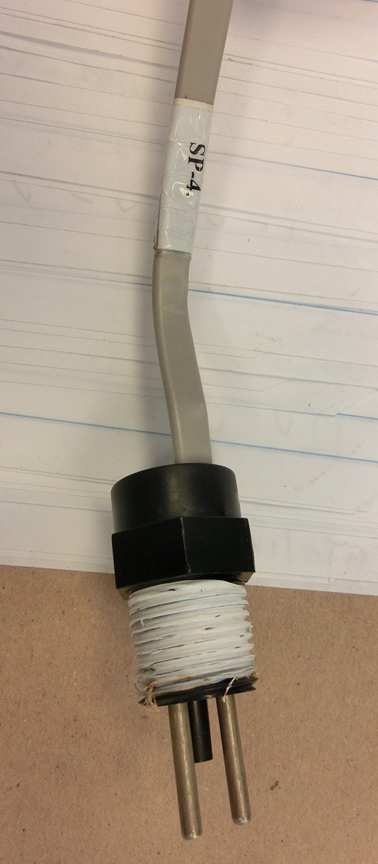

"SP4" Probe:
