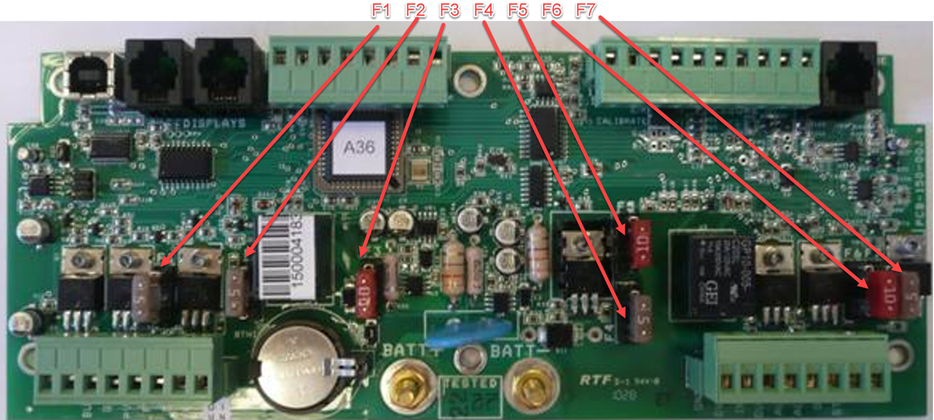

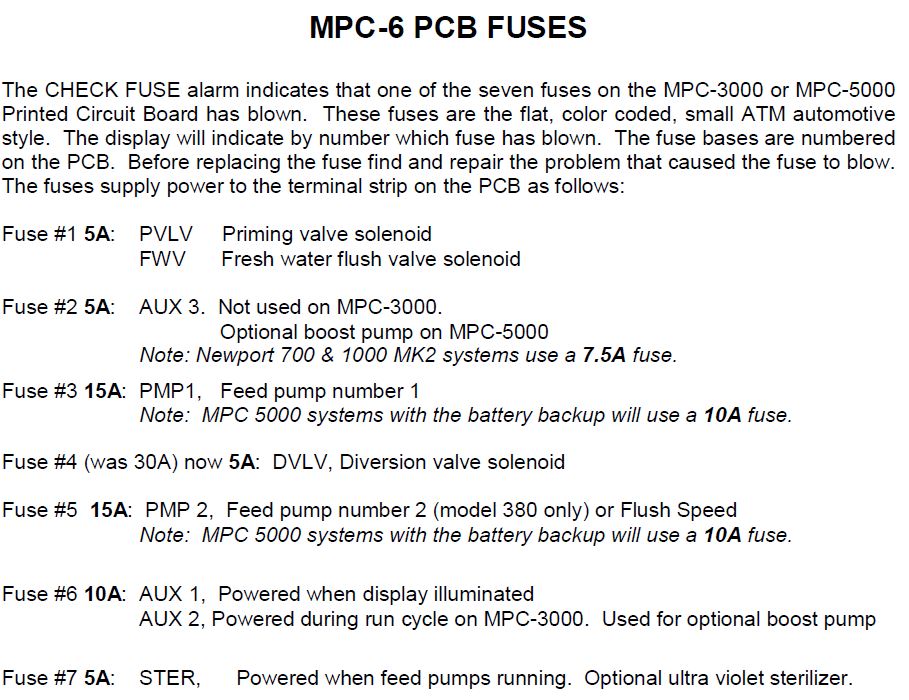

MPC3000/5000 boards rely on seven fuses to protect the board from suffering damage. For MPC systems, the below table is very helpful when diagnosing a blown fuse. The photo below the table has locations for each fuse, which are also printed on the board itself in white text near the corresponding fuse. The newer Spectra Connect board functions differently via resettable FETs.
